Körting gas scrubbers trial and rental units

Sophisticated solutions for demanding processes

Industrial and process exhaust gases often entail pollutants and dust that are hard to contain. Existing gas scrubbers quickly reach their limits if emission standards are tightened up, or processes become more complex. New or modified processes might also present waste gas scrubbing with unforeseen challenges. Or just scaling up lab results could simply be too unreliable.



This is where Körting comes in with innovative trial and rental scrubbers. These enable cost-effective testing on existing processes or a testing facilities.

Flexibility whatever the challenges

Körting has more than 100 years of experience with waste gas scrubbing. It offers jet scrubbers and Venturi scrubbers, which have a proven track record. What’s more, customers can also flexibly put these to the test on a trial basis. Whether they need to separate dust or droplets, absorb SO2, Cl2, HCl, HF or NH3 and other pollutants, or quench hot waste gas, customers can incorporate Körting’s trial or rental gas scrubbers into their processes. These turnkey, modular options are easy to transport and assemble.



They enable quick and reliable evaluations of new solutions. Without necessitating an immediate, ongoing investment, they provide certainty that the route taken is definitely the right one.

Real-world success story

The following example demonstrates just how flexible the trial and rental scrubbers can be.



One company had problems meeting dust limits with an old, existing scrubber. Furthermore deposits had accumulated on it, which consequently caused frequent downtime. No dust particle-size distribution (multi-component mix) existed and could only have been established after extensive preparation and costly on-site measurements.



This is where a Körting trial system with a Venturi scrubber came in. A partial flow of the waste gas was fed directly from the customer’s process to the trial equipment. Determining the pressure loss required for dedusting was just one of the factors the adjustable Venturi scrubber helped identify. This key parameter and additional findings from the trials, such as the sedimentation behaviour of the separated dust in the scrubbing medium and deposits on the gas inlet and outlet, were reflected in the design of the large system. Körting liquid jet mixing nozzles keep particles of dust in suspension for easy pumping out or discharge afterwards. Additional rinsing devices prevent dust from depositing itself in the system. The result is a customised, reliable gas scrubbing system that meets emission requirements and enables production minus the downtime.

Rental Venturi scrubber
Rental Venturi scrubber

Rental Venturi scrubber (DN 200)

Gas flow [m³/h]

1,000 max.

Liquid flow [m³/h]

1.2

Motive pressure on the nozzle [bar]

3.0

Gas pressure loss [mbar]

max. 100

Motor power [kW]

pump 4 kW, blower 11kW



Venturi scrubber scale-up
Venturi scrubber scale-up

Venturi scrubber scale-up (DN 700)

Applications

Separating metal dust

Gas flow [m³/h]

approx. 28,000

Liquid flow [m³/h]

33

Motive pressure on the nozzle [bar]

2.0

Gas pressure loss [mbar]

75

Motor power [kW]

18.5 (pump)



Why rent a scrubber?

The benefits are clear. Rental and trial scrubbers allow companies to analyse processes precisely and work out what they require from a permanent system. They save time, costs and minimise risks. Rental and trial scrubbers are ideal for challenging process where the final composition of pollutants or their behaviour are hard to determine. Cooling, scrubbing and conveying is what we excel at.

A clean exhaust-air partner

Körting’s rental and trial scrubbers give customers and companies technical support and assurance that they have a proven and robust solution. From the very first analysis and trial, assisted by Körting’s experts on site if necessary, customers can rest easy knowing that they can count on Körting.



Are you also seeking an efficient, flexible solution for treating exhaust gas? Contact us and see for yourself how Körting can make your processes cleaner and more efficient.

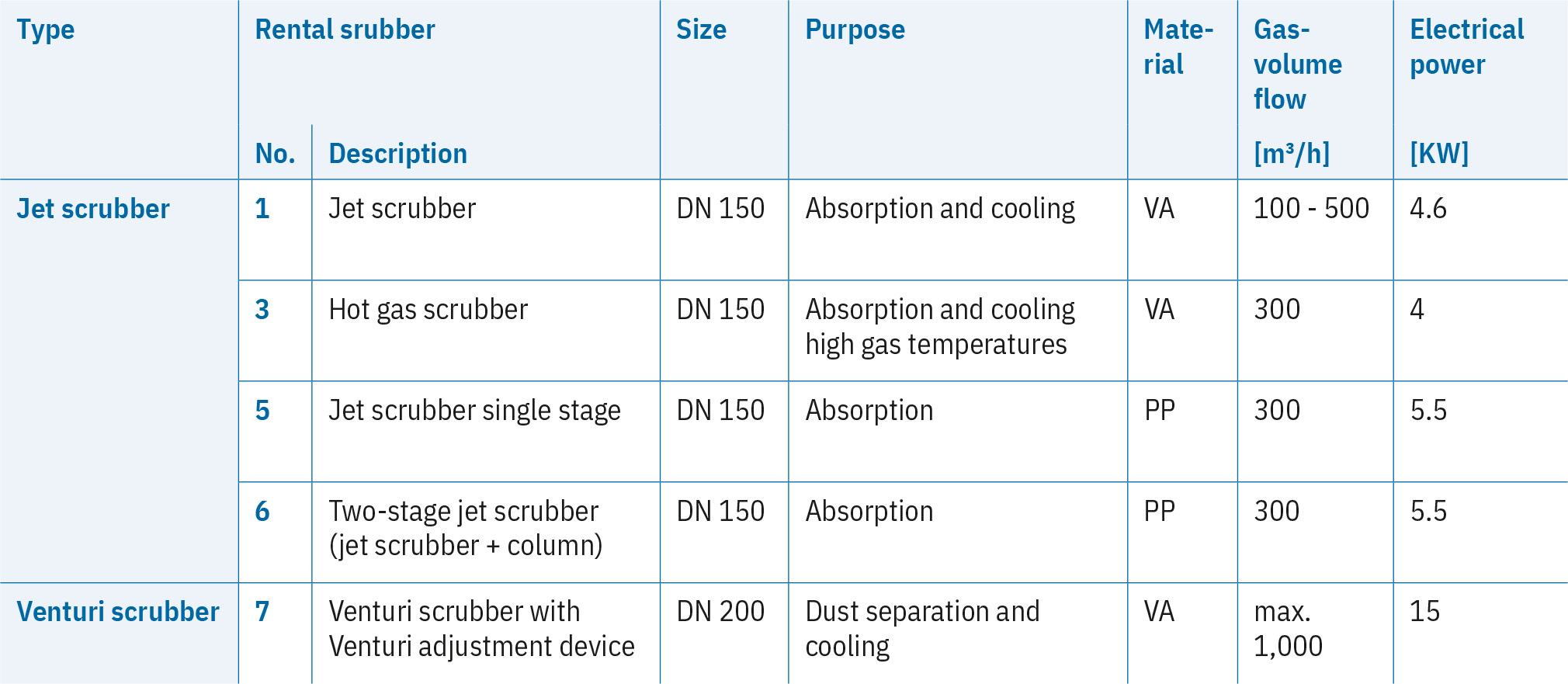

Overview of the trial and rental scrubbers currently available
Overview of the trial and rental scrubbers currently available
