Liquid jet liquid ejector

A liquid motive medium is used to suck off another liquid and to convey it to a higher pressure. High turbulence achieves a homogeneous intermixture of both flows.

Classical application in the shipbuilding industry (bilge of ballast tanks)
Classical application in the shipbuilding industry (bilge of ballast tanks)

Applications

Ship-building

Water treatment

Foodstuffs- and chemical industry

  • pumping and mixing of diverse liquids

Synthetic fertilizer plants (UREA plants)

Hydroelectric power stations

  • emergency drainage of pump pits

Sea-water evaporators

  • conveying concentrated sea-water (brine)

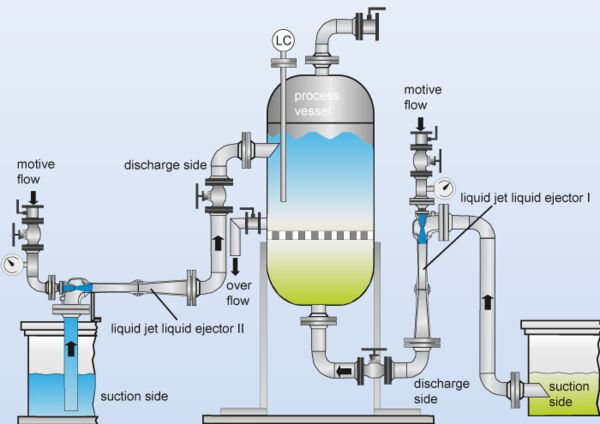

Application example with two liquid jet liquid ejectors
Application example with two liquid jet liquid ejectors
Application example with motive flow generation by a centrifugal pump
Application example with motive flow generation by a centrifugal pump
