Process vapour operated ejectors

Process vapour operated ejectors in a glycol plant
Process vapour operated ejectors in a glycol plant

Organic vapours such as e.g. ethylene-glycol, butandiol, butanol, mono-chloride benzol, trichloroethylene, may all be used as a motive medium for ejectors operating with vapour from the process. The suitability of a substance as a motive medium is determined by its vapour pressure curve. The decisive factor is that the evaporation temperature should be less than the decomposition temperature. The temperature of the available cooling agent determines the necessary condensation pressure and can absolutely exclude the use of certain motive flows. Vapour pressure alterations caused by low-boiling components must be taken into consideration.

Applications

  • vacuum generation for polycondensation processes e.g. PET, PBT
  • vacuum generation for special products


Advantages

  • suction- and operating flows are identical
  • pollution-resistant
  • trouble-free operation for years
  • no need for a stand-by system
  • economical operation
  • no waste water

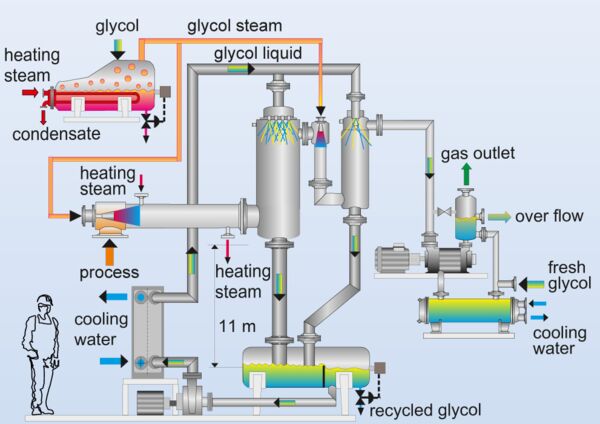

Flow chart of process vapour operated ejectors
Flow chart of process vapour operated ejectors
